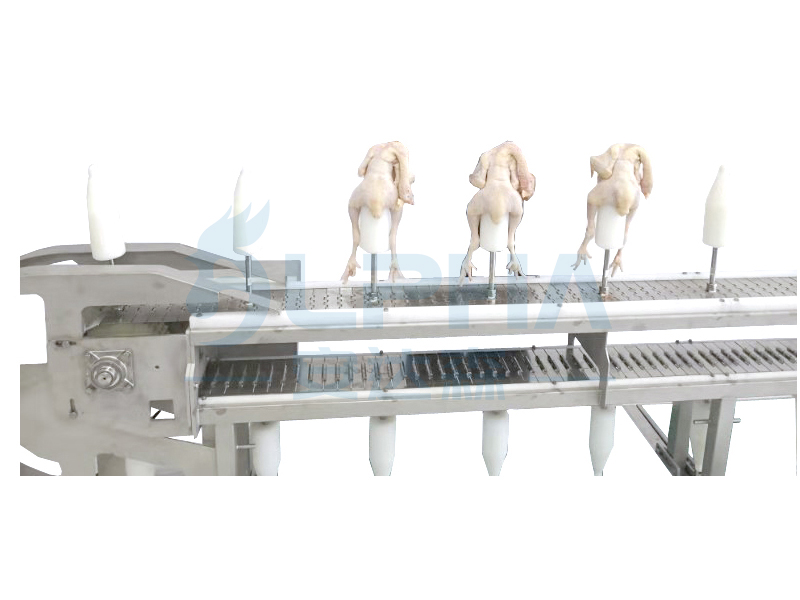

Poultry Cone Debone/Cut-up Machine

The poultry Cone Deboning/Cut up machine is designed to divide whole products into pieces of high quality and high yield. It combines manual and automated processes to prepare wings, legs and other separated products.


* Different length for various capacity

* Speed is adjustable by converter.

* Set up is freely. There’s no special request for location and working stations.

* Easier and safer for workers to operating and adjusting

* Widely application such as chicken, duck, goose, turkey, etc.


1) Material: all stainless steel 304 frame and nylon cone set

2) Motor: 1.1Kw / 1.5Kw

3) Voltage: 380V, 50Hz, 3Ph, or customized

4) Capacity: up to 2000pc per hour

5) Length: 5600mm

6) Width: 1000mm

7) Height: 700mm

8) Cone quantity: 34pc


1) Side conveyors

2) Side table frame with basket
